Coupling problems of the orange kind

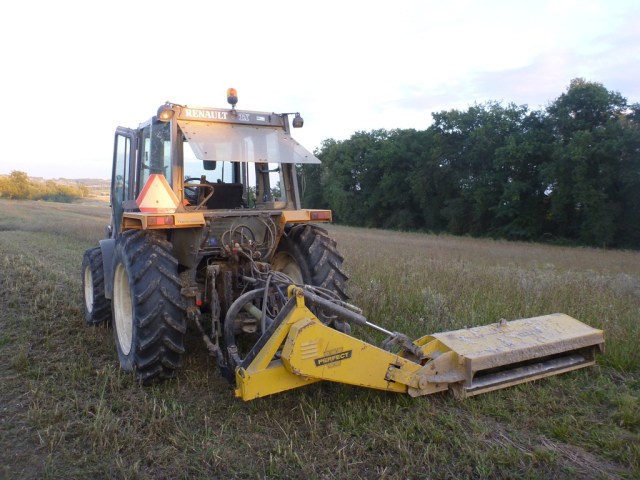

One tool that gets used a lot on the farm is the flail mower, or broyeur à axe horizontal. If I’m being honest it gets used too much. When a pasture is messy I can bunch the cows up and move them more often to achieve the same ends in a less dieselpunk way. Still, it is fun to watch the mower chew up everything in its path.

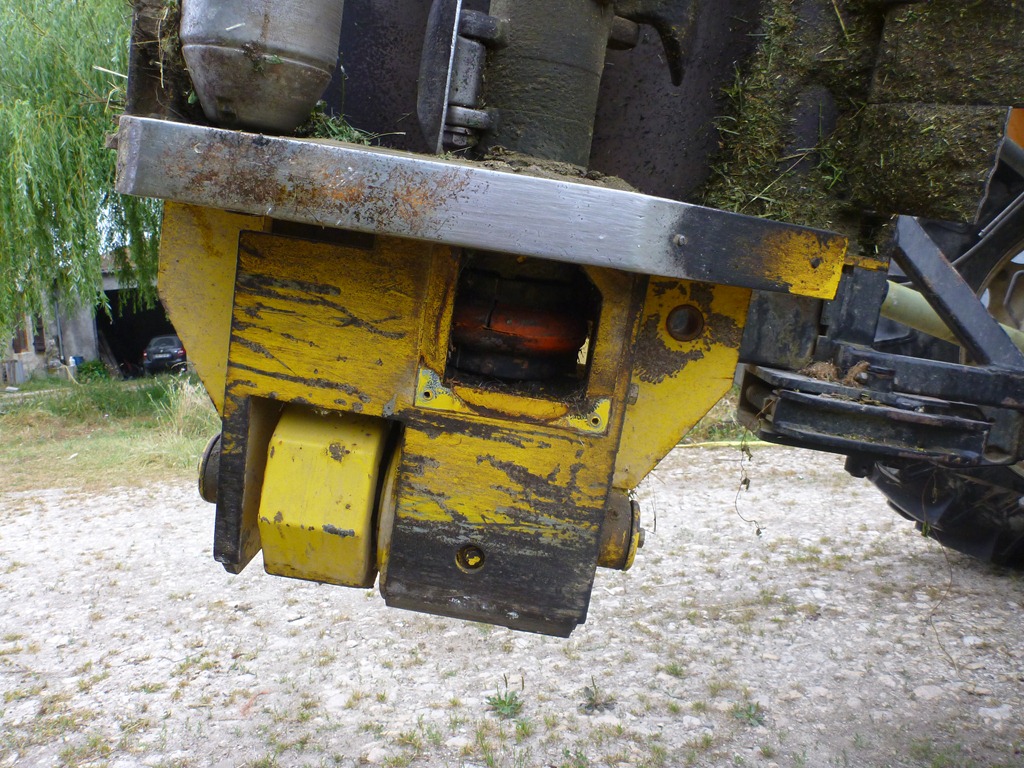

The mower has an orange rubber coupling that acts as a shock absorber. It lies between the mower’s gearbox and the spinning bar.

P1040448

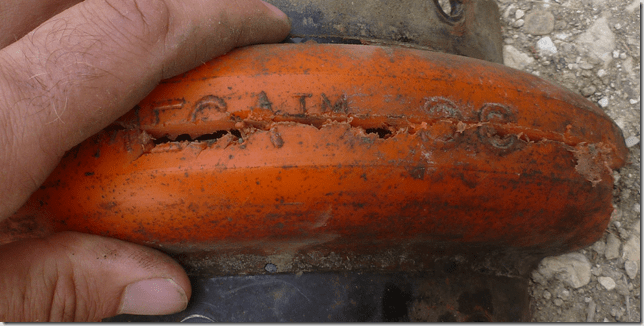

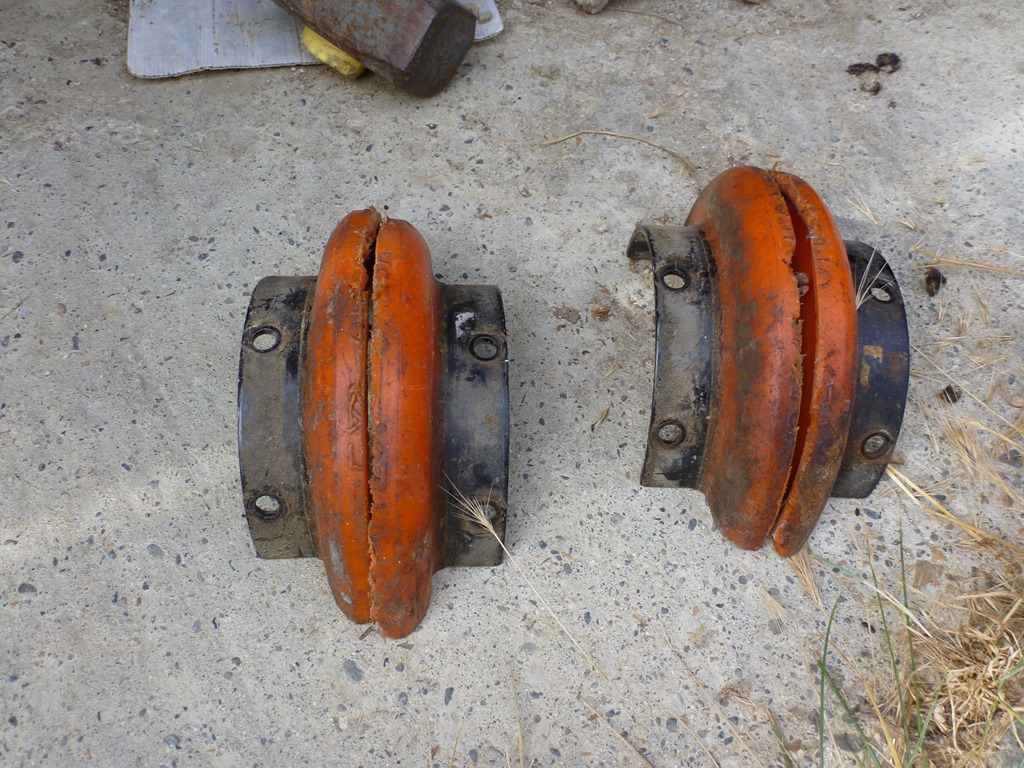

It broke.

P1040684

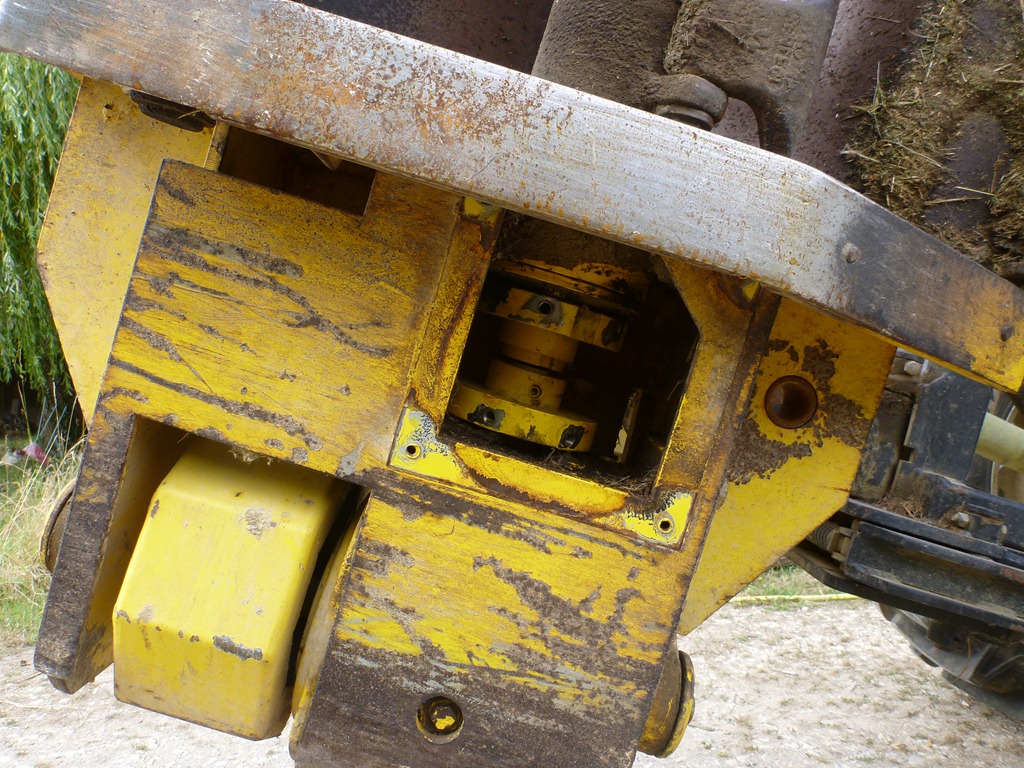

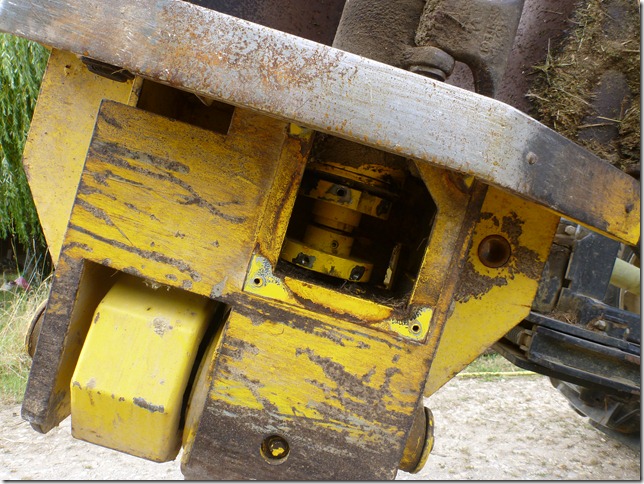

This is ok and to be expected every few years. Its job is to save the more expensive parts upstream – the gearbox on the mower and the pto on the tractor. The coupling isn’t particularly big; it consists of two rubber semi-circles with steel collars to bolt onto the hubs. Here are the hubs once the coupling has been removed.

P1040679

The mower is made by Perfect so I called them for a part price. They sent me to their French distributer who quoted me a price of 695€. Oh boy. I called around and found other places all quoting the same price.

Then I called one mower dealer in the UK. He said Perfect are pretty hard core with their pricing, but the part was likely to be manufactured by someone else and if I could source it from them I’d save some money. Next time I’m hunting for a mower he gets the first call.

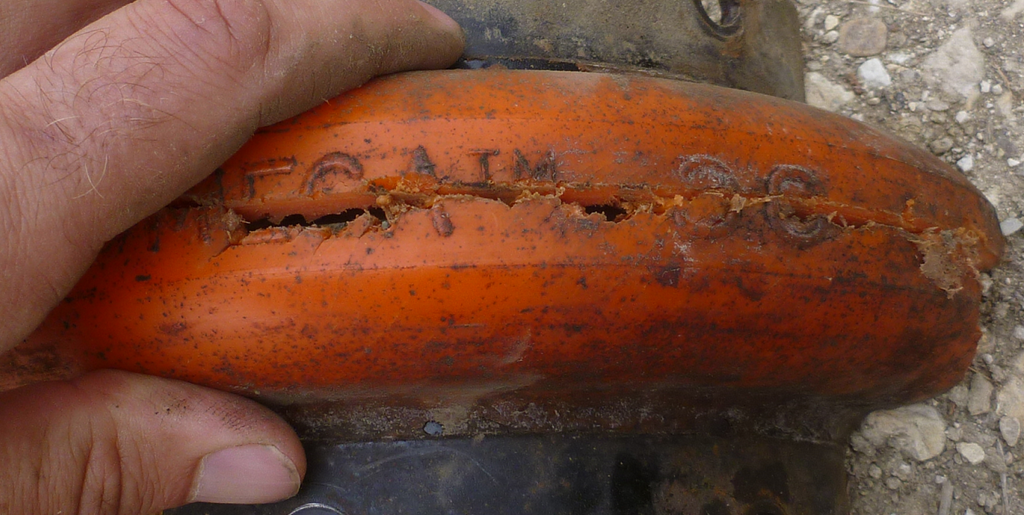

So who made the part? Piecing the broken bits together gave ‘REX OMEGATM 30’on it and a quick search on the net found it was an American part manufactured by Rexnord. They’re used in all sorts of manufacturing.


I found a French company that sold it for 377€. Now this is nowhere near as cheap as it would have been in the USA (e.g. on ebay for $139), but with shipping and delays I went with the French offer so I could get back to mowing the new lucerne plantings.

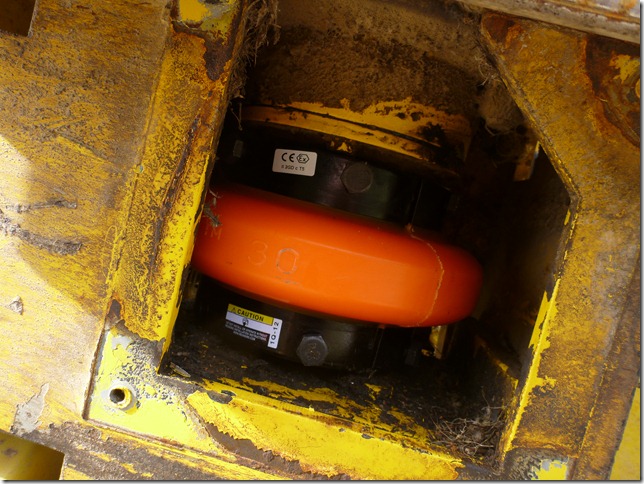

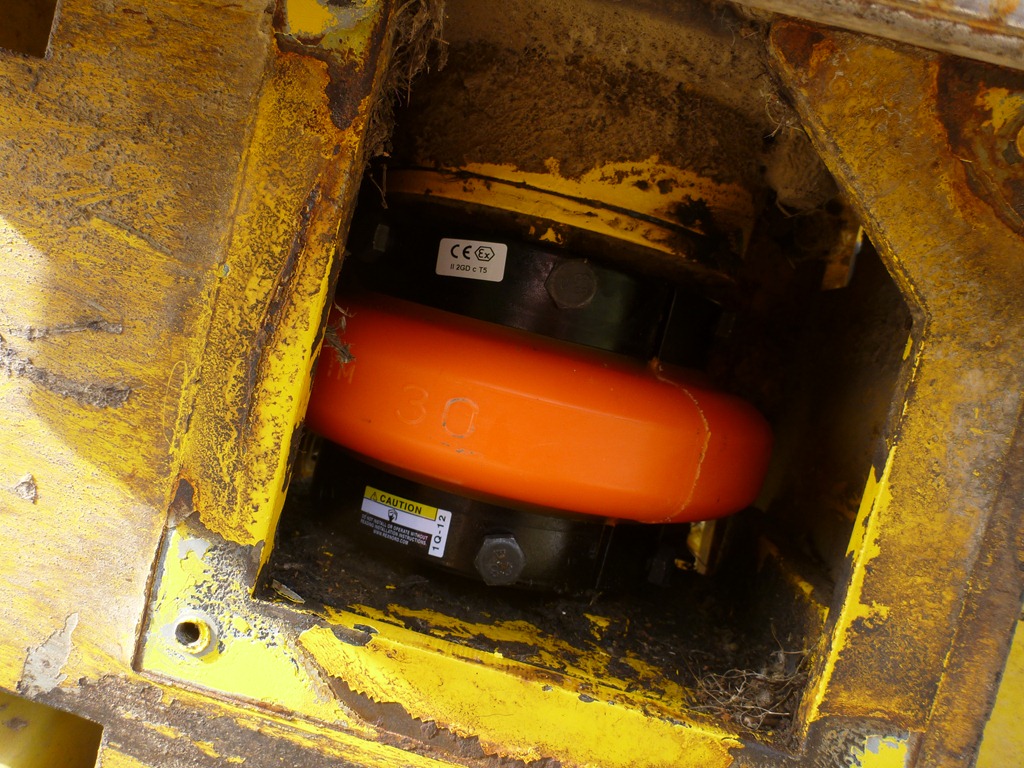

Installed.

P1040680

The design of the Perfect mower is pretty cool. It was trivial to replace this part. It is an older mower from 1990 and too complex for my needs (I don’t need the hydraulic arm that goes up and down and in and out) but it certainly is a well-built and serviceable item.

These repairs are making me reconsider how much I use this tool. With the tractor costs and mower repair bills we’d be much better off getting the cows to do the work.

Here’s the new lucerne planting about three weeks after it was mowed. It seems to be the hottest day of the year so far with a forecast maximum of 36 celsius and the new lucerne leaves fold up a little. Still, it is growing better than the regular pasture. To be accurate, it is growing and the regular pasture isn’t.

DSC_6297

Chopping up the leaves and stems lets them work back into the ground to get an even first layer to start building the soil. Next time through will be with the herd.

3 thoughts on “Coupling problems of the orange kind

  1. Gordon Milligan says:

    That’s a unusual looking flail mower, I have never seen one like it here in the states. I have an old 5ft Mott flail mower. It is the only mower I have, it came with the tractor when I bought it. I had to replace all the bearings and seals and did a post about it on TractorByTheNet. I love mine for the same reason you do, it acts like a mulching mower and chops up the pasture folage into small peices and it breaks down better in the pasture. The rotary mowers look like you cut hay when you use them. That Lucerne field really looks nice and grows fast.

  2. bc says:

    SL, if it was a mature stand it would be twice the size. The older fields are getting to maturity (flowers) in about four or five weeks. The little bit of rain we had a month ago was a great help.
